Developed by MOTI INDUSTRIAL for professional electrical fabrication, the MOTI-200B combines three essential busbar operations into one compact hydraulic platform.
Integrating punching, shearing, and bending functions into one compact unit, MOTI-200B provides an efficient and flexible solution for electrical contractors, switchgear manufacturers, transformer factories, and power engineering projects.
Designed with portability, precision, and reliability in mind, the MOTI-200B can process large-sized busbars up to 200mm in width and 12mm in thickness, making it suitable for both workshop production and on-site installation work.
Technical Parameter of MOTI-200B Portable Copper Busbar Machine
| Rated Operating Oil Pressure | 700KGF / CM² 10000PSI |
| Processing Thickness Range | Copper / Aluminum Busbar 3-12mm Steel 3-10mm |
| Cutting Force | 30 TON |
| Capacity ( mm ) | Copper Aluminum Busbar ≤ 12mm x 200mm |
| Bending Angle Range | 0 - 90 ° |
| Comes standard with punching dies | ∅7mm, ∅9mm, ∅10.5mm, ∅13.8mm, ∅17mm, ∅20.5mm |
| Punching Force | 35TON |
| Distance from hole center to edge of copper busbar | 110mm |
| Bending Force | 30TON |
| Weight | Net weight: 290KG Gross weight: 300KG |

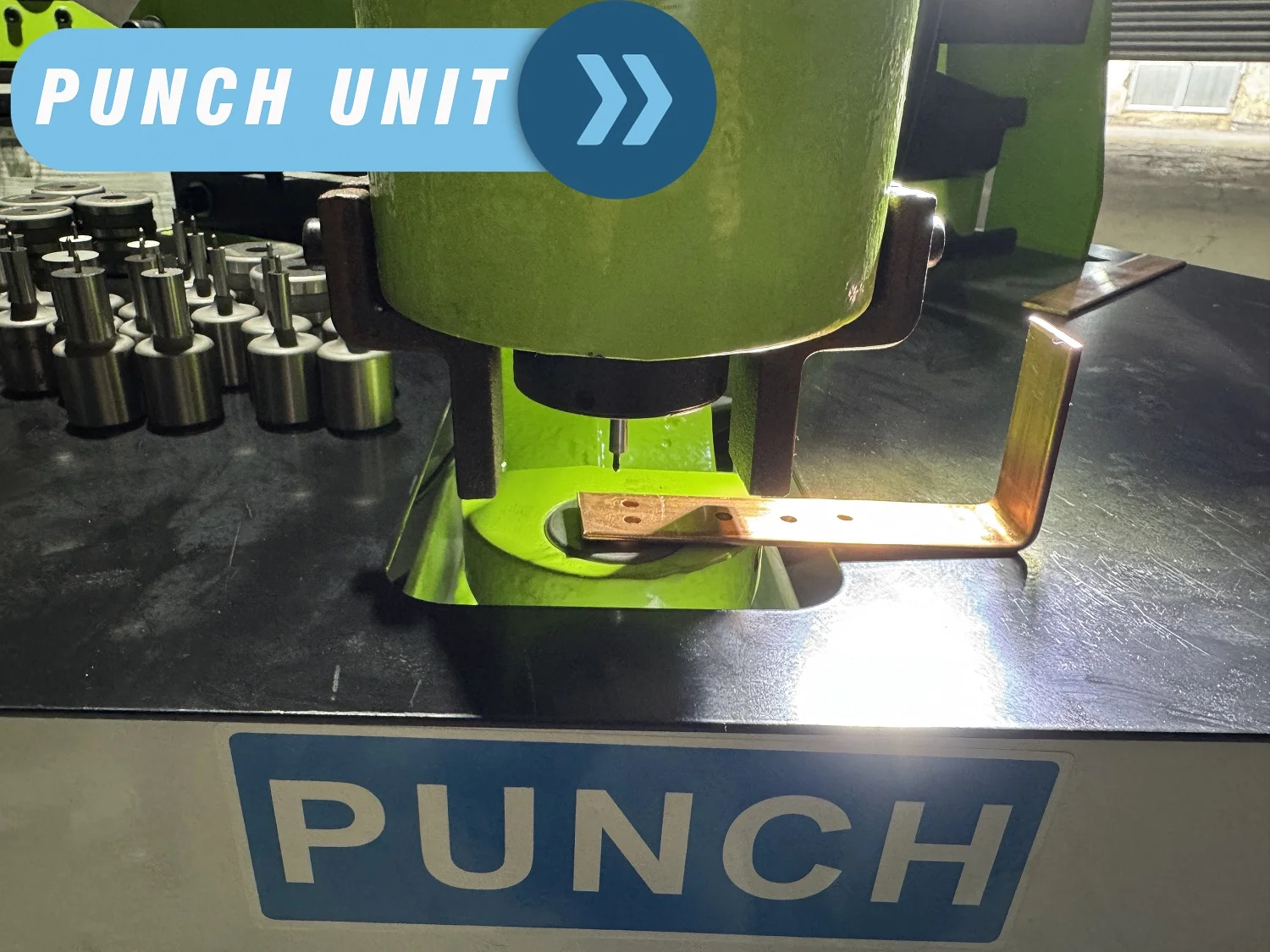

The hydraulic punching unit of MOTI-200B delivers powerful and stable punching performance for copper and aluminum busbars.
Compared with traditional manual punching tools, the hydraulic system significantly reduces labor intensity while improving hole accuracy and processing efficiency.
Advantages of MOTI-200B Punching Function:
Fast and clean punching operation
Smooth hole edges with minimal deformation
High punching accuracy and repeatability
Suitable for copper busbar and aluminum busbar applications
Supports various round hole sizes for different electrical connection requirements
The punching unit is designed to provide consistent results for switchgear panels, distribution cabinets, transformer connections, and power transmission equipment.

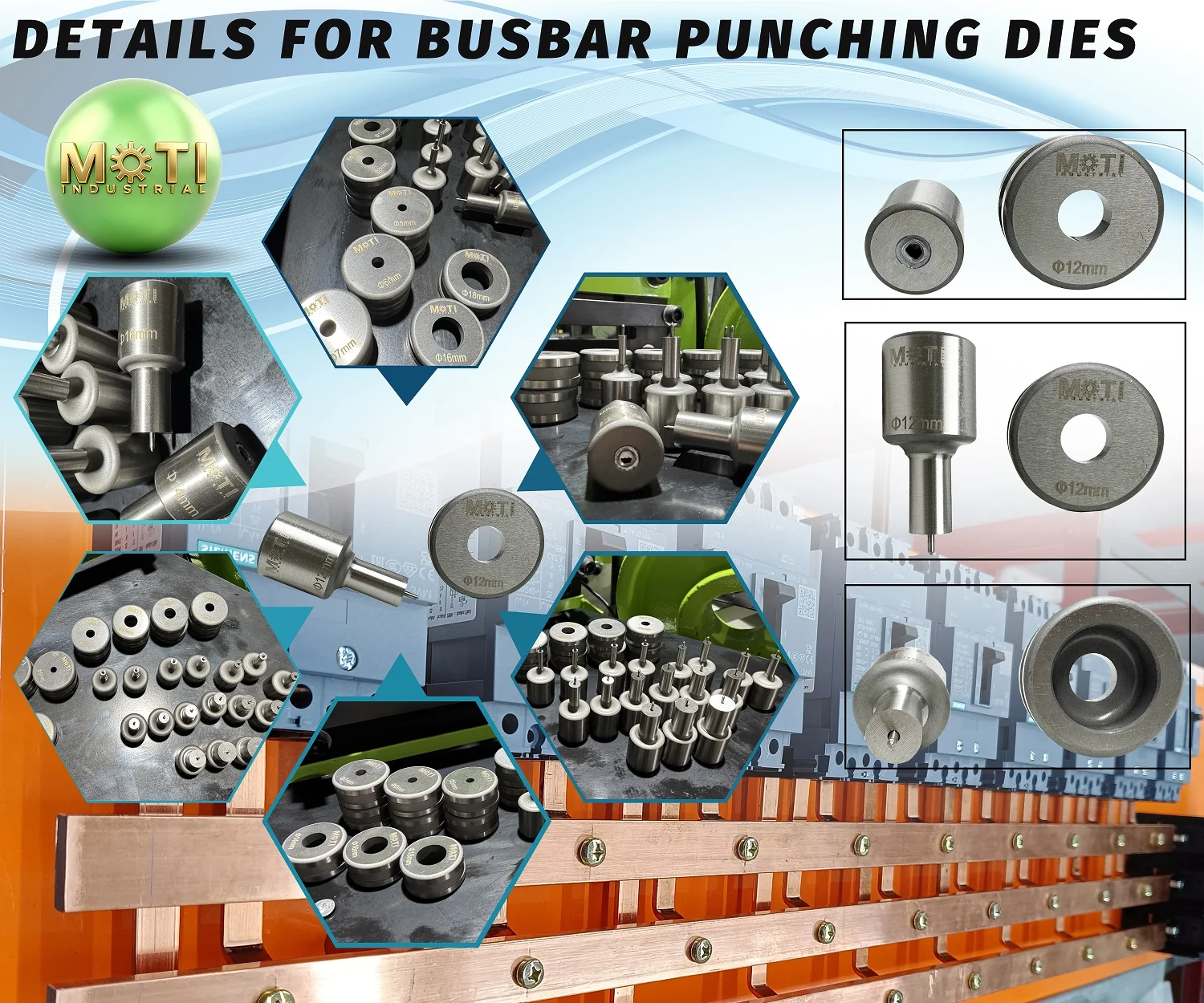

To improve machining quality and extend service life, MOTI INDUSTRIAL has specially upgraded the punching die design for the MOTI-200B Portable Busbar Processing Machine.
The upgraded punching molds provide several important advantages:
The new-generation punching dies use optimized structural design to enhance rigidity and durability during high-pressure punching operations.
This helps reduce deformation of the punch and die, ensuring longer service life.
The upgraded molds provide:
Cleaner punching edges
Reduced burr formation
More accurate hole dimensions
Improved surface quality of processed busbars
This allows customers to achieve professional-quality busbar connections without additional finishing work.
MOTI INDUSTRIAL offers multiple punching die options, including standard round hole dies and customized solutions according to customer requirements.
The standard punching die sizes include commonly used diameters for busbar electrical connections, while special round or oval hole molds can also be customized.
The upgraded punching mold structure makes installation, replacement, and maintenance more convenient, reducing machine downtime and improving production efficiency.

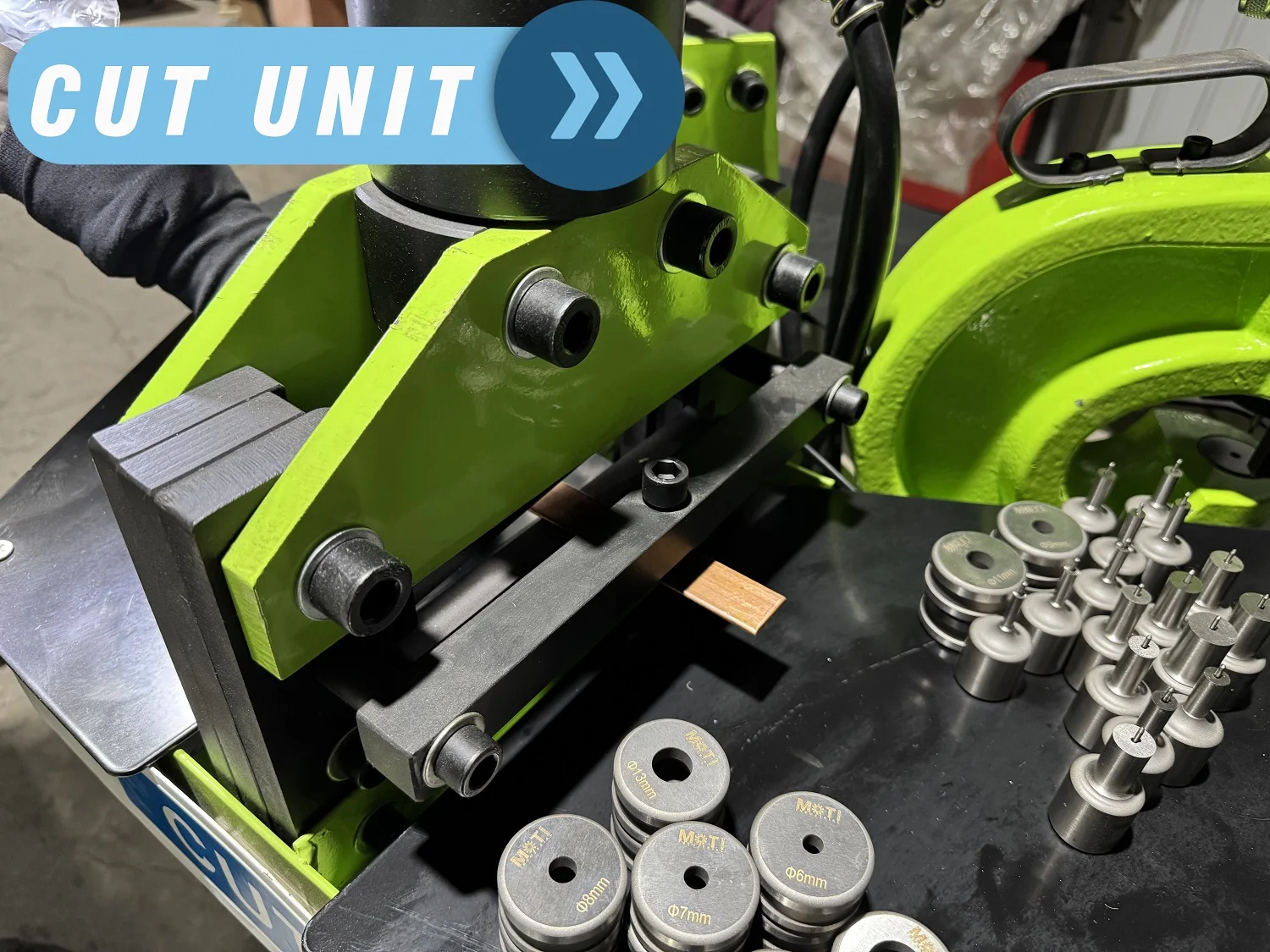

The MOTI-200B hydraulic cutting unit is designed for accurate and efficient busbar shearing. The optimized cutting structure ensures stable positioning and clean cutting results.
Accurate cutting dimensions
Smooth cutting surface
Reduced material waste
High efficiency compared with manual cutting tools
Suitable for copper and aluminum busbars
The integrated positioning design helps operators achieve straight and precise cuts, improving the overall quality of finished busbar components.

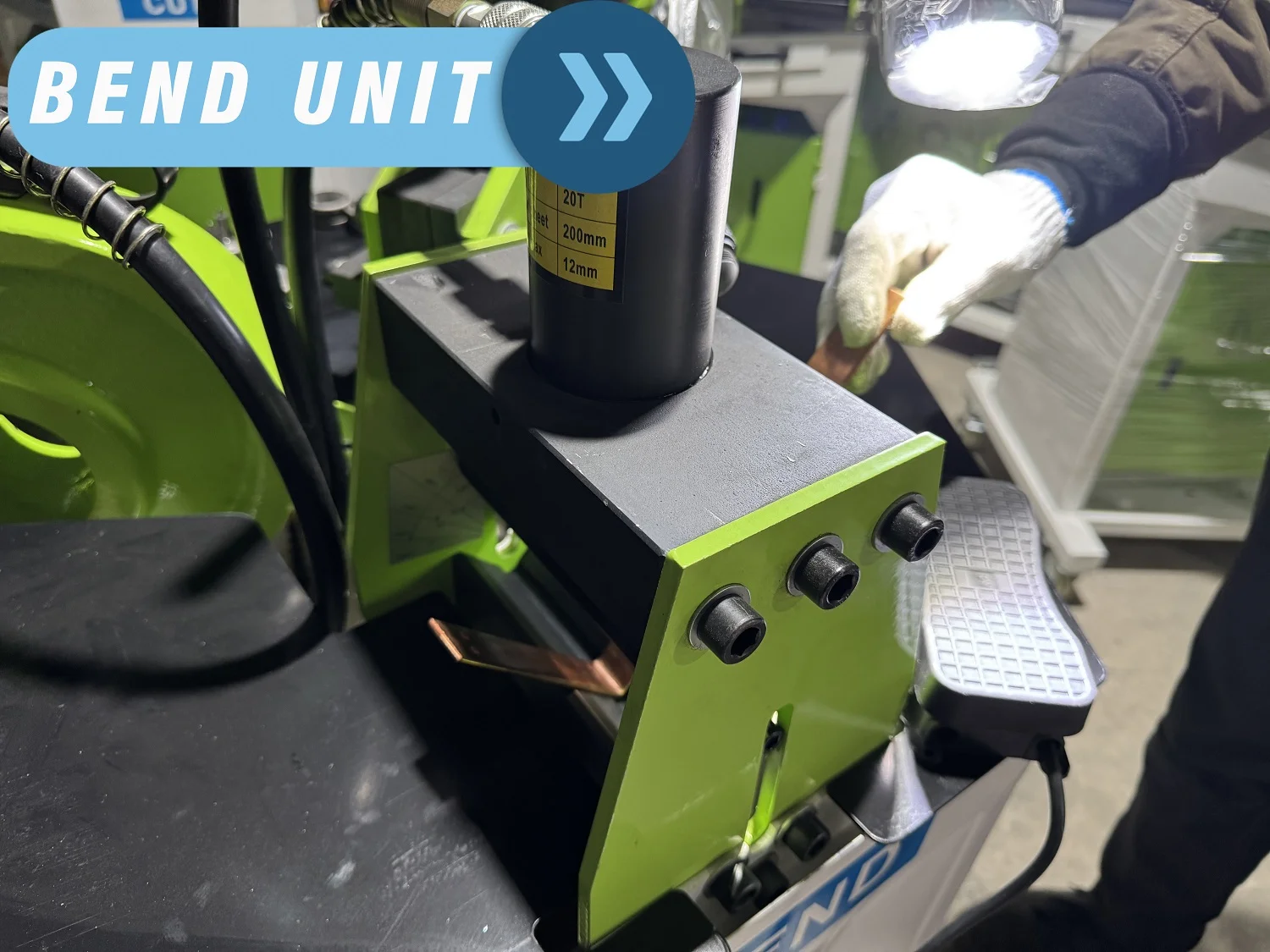

The MOTI-200B provides professional hydraulic bending performance for copper and aluminum busbars.
The bending unit supports accurate angle control and is suitable for repeated bending operations in electrical manufacturing.
Maximum bending angle up to 90°
Stable hydraulic bending force
Accurate bending positioning
Reduced risk of copper bar damage
Suitable for batch processing
The improved bending structure and positioning design help operators achieve consistent bending results, especially for switchgear and electrical cabinet manufacturing.

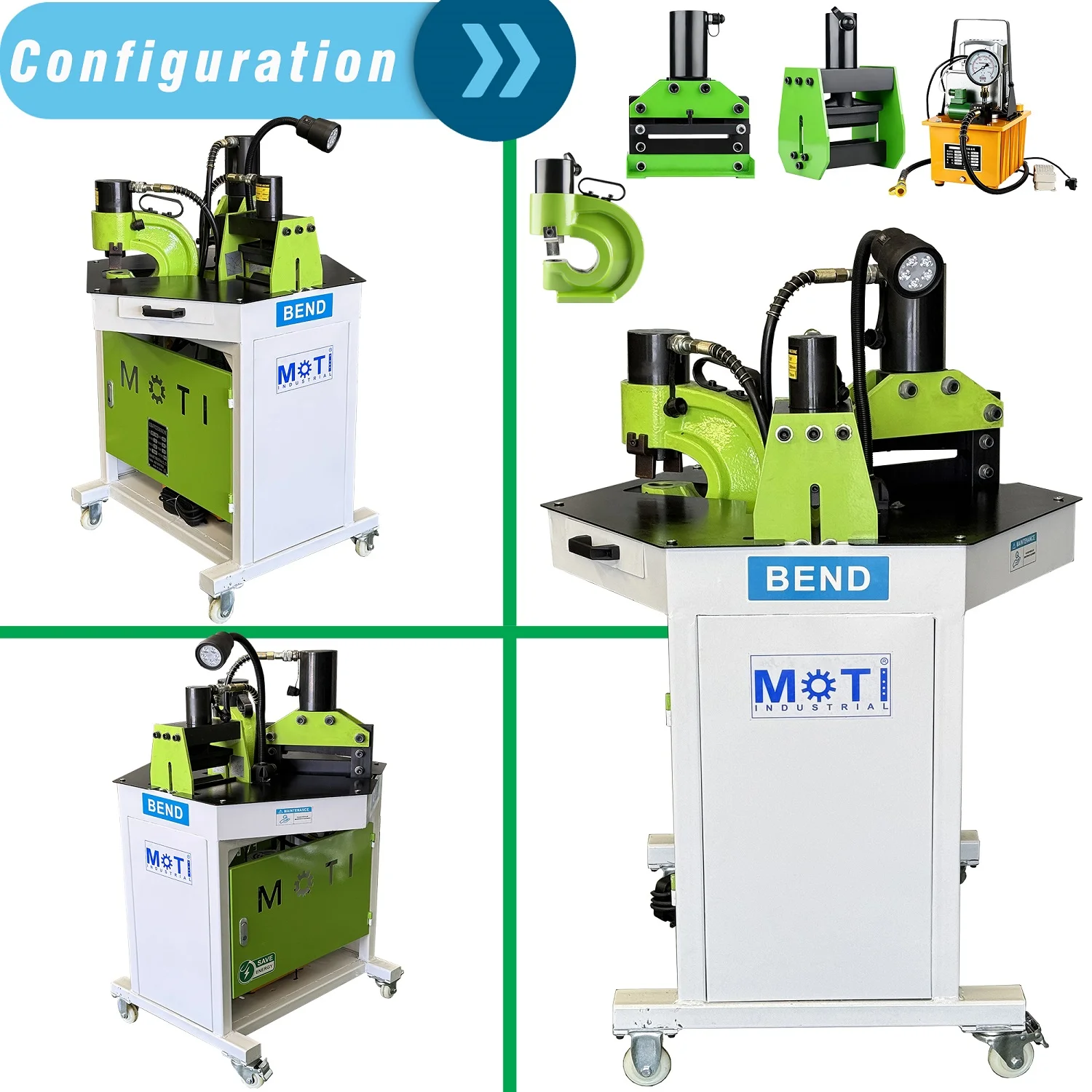

Unlike traditional large busbar processing equipment, the Portable Busbar Processing Machine MOTI-200B combines multiple functions into a compact mobile design.
Main advantages include:
3-in-1 multifunctional operation
Easy transportation and installation
Reduced equipment investment
Lower workshop space requirements
Suitable for field installation projects
With one MOTI-200B machine, users can complete multiple busbar fabrication processes without moving materials between different machines.
As a professional busbar machine manufacturer, MOTI INDUSTRIAL continuously improves product design according to customer feedback and industry requirements.
The MOTI-200B combines advanced hydraulic technology, upgraded tooling solutions, and practical operating experience to deliver reliable busbar processing performance.
MOTI-200B Highlights:
✔ 3-in-1 busbar processing: Punching + Cutting + Bending
✔ Processing capacity up to 200mm × 12mm busbar
✔ Upgraded punching dies for higher accuracy and durability
✔ Stable hydraulic power system
✔ Portable design for field operation
✔ Suitable for copper and aluminum busbars
✔ Professional solution for switchgear, transformers, and power industries
The Portable Busbar Processing Machine MOTI-200B is widely used in:
Electrical switchgear manufacturing
Power distribution cabinet production
Transformer assembly
Substation construction
Electrical installation projects
Industrial power systems
With years of experience in busbar processing technology, MOTI INDUSTRIAL provides reliable solutions, including portable busbar machines,
CNC busbar processing machines, punching dies, bending tools, and customized busbar fabrication equipment.
The upgraded Portable Busbar Processing Machine MOTI-200B represents MOTI INDUSTRIAL’s commitment to higher efficiency, better precision, and improved customer experience.
Portable Busbar Processing Machine MOTI-200B — Your Reliable Partner for Professional Busbar Fabrication.
A: The Portable Busbar Processing Machine MOTI-200B is designed for processing copper and aluminum busbars with a maximum size of 200mm width and 12mm thickness.
It integrates punching, cutting, and bending functions, allowing users to complete multiple busbar fabrication processes with one compact hydraulic machine.
With its powerful hydraulic system and stable processing structure, MOTI-200B is suitable for electrical switchgear manufacturing, power distribution cabinets, transformer connections, and on-site electrical installation projects.
A: The MOTI-200B is equipped with specially upgraded punching dies developed by MOTI INDUSTRIAL to achieve higher punching accuracy, better durability, and improved processing quality.
Standard punching dies are available for commonly used busbar connection holes, including different round hole sizes required for electrical installation applications.
MOTI INDUSTRIAL can also provide customized punching dies according to specific customer requirements.
The upgraded punching die system features:
Optimized die structure for higher strength and stability
Improved wear resistance for longer service life
Cleaner punching edges with reduced burrs
Better hole accuracy and repeatability
Easier installation and replacement
These improvements help users achieve more efficient busbar fabrication with less maintenance and higher production consistency.
A: Yes. MOTI INDUSTRIAL provides customized punching die solutions for the MOTI-200B Portable Busbar Processing Machine according to different application requirements.
Customers can request customized solutions based on:
Special hole diameters
Non-standard hole shapes
Specific busbar connection designs
Different production requirements
MOTI INDUSTRIAL’s engineering team can optimize punching die designs to ensure compatibility with different copper and aluminum busbar processing applications.
A: The MOTI-200B is a multifunctional hydraulic busbar processing machine that combines three essential operations:
1. Punching:
Creates accurate connection holes on copper and aluminum busbars with clean edges and stable quality.
2. Cutting:
Provides precise shearing performance with smooth cutting surfaces and reduced material waste.
3. Bending:
Allows accurate hydraulic bending for electrical busbar fabrication, helping operators achieve consistent bending angles.
This 3-in-1 design reduces the need for multiple machines and improves overall working efficiency.
A: The upgraded punching dies developed by MOTI INDUSTRIAL improve the overall performance of the MOTI-200B by focusing on punching precision, durability, and user convenience.
Compared with traditional punching molds, the upgraded design provides:
Higher resistance to wear during continuous operation
More stable punching performance
Reduced deformation during high-pressure processing
Improved hole quality and edge finishing
Longer service life of punching components
These improvements help customers reduce downtime and maintain consistent busbar processing quality.
A: Yes. The compact and portable design of the MOTI-200B Portable Busbar Processing Machine makes it suitable for both workshop fabrication and field installation.
Compared with large stationary busbar processing equipment, MOTI-200B offers:
Easy transportation between job sites
Reduced installation requirements
Flexible operation in different working environments
Multiple functions in one machine
It is widely used by electrical contractors, switchgear manufacturers, and power engineering companies.
A: The MOTI-200B is designed for processing both copper busbars and aluminum busbars.
Its hydraulic punching, cutting, and bending systems provide reliable performance for electrical power applications where high accuracy and consistent processing quality are required.
A: The MOTI-200B provides a cost-effective and efficient alternative by combining three essential busbar fabrication functions into one hydraulic machine.
Key advantages include:
Space-saving 3-in-1 design
Lower equipment investment
Faster processing workflow
Reduced operator workload
Professional punching die solutions from MOTI INDUSTRIAL
The MOTI-200B is developed to provide reliable busbar fabrication performance for modern electrical manufacturing requirements.
