The Busbar Punch & Dies specifically designed for portable busbar machines, leveraging MOTI INDUSTRIAL Group's innovative design philosophy and practical structural advancements, enable highly efficient and precise punching operations on copper and aluminum busbars.
1. Basic Information of Busbar Punch & Dies
| Brand | By MOTI INDUSTRIAL Designed |
| Size of Busbar Punch & Dies | Round Hole: ∅7mm, ∅9mm, ∅10.5mm, ∅13.8mm, ∅17mm, ∅20.5mm In Stock |
| Other Busbar Punching Die Size | Busbar Punching Die Sizes can be customized as required. Round Hole: Diameter ∅≤25mm (Any size is available within this range for customization.) Oblong/Oval Hole: ≤16mm x 22mm (16 denotes the diameter, 22 denotes the length.) |
2. Features for Busbar Punch And Dies
(1) Capacity Ability
Solid and laminated bus bars from Al/Cu to a maximum of 12mm (1/2'') and steel to 10mm thick
(2) With a long lifespan and good material
This busbar punching dies utilize Cr12Mov tool steel as its base material, undergoing forging, machining center processing, heat treatment (Quenching + Tempering), precision finishing to maintain accuracy, and finally assembly and debugging.
The investment in genuine materials and rigorous manufacturing processes ensures the high-quality of the busbar punching die and extends its service life.
(3) An innovative design and high precision
The new busbar punching dies designed by MOTI INDUSTRIAL not only replace the original raw material iron with higher-quality Cr12Mov tool steel but also feature upgraded and modified mold structures.
Each new busbar punch die set incorporates built-in springs and stainless steel positioning pins, a design that greatly facilitates operators in accurately locating punch positions during operations.
The gap between the upper and lower dies has been reduced significantly, meeting customers' precision requirements for copper busbar punching.
(4) MOTI Busbar Punching Die is compatible with multiple punching tool models
The new MOTI Busbar Punching Die is compatible with the CH-70 punching tool.
The new MOTI Busbar Punching Dies are compatible with the HYDRAFORE Power Tools.
Such as Busbar Punch Dies 1/2'' For M-70 (M-70-1/2'') M-70 means M-70 punching tool, 1/2'' means punching diameter is 1/2''(12mm).

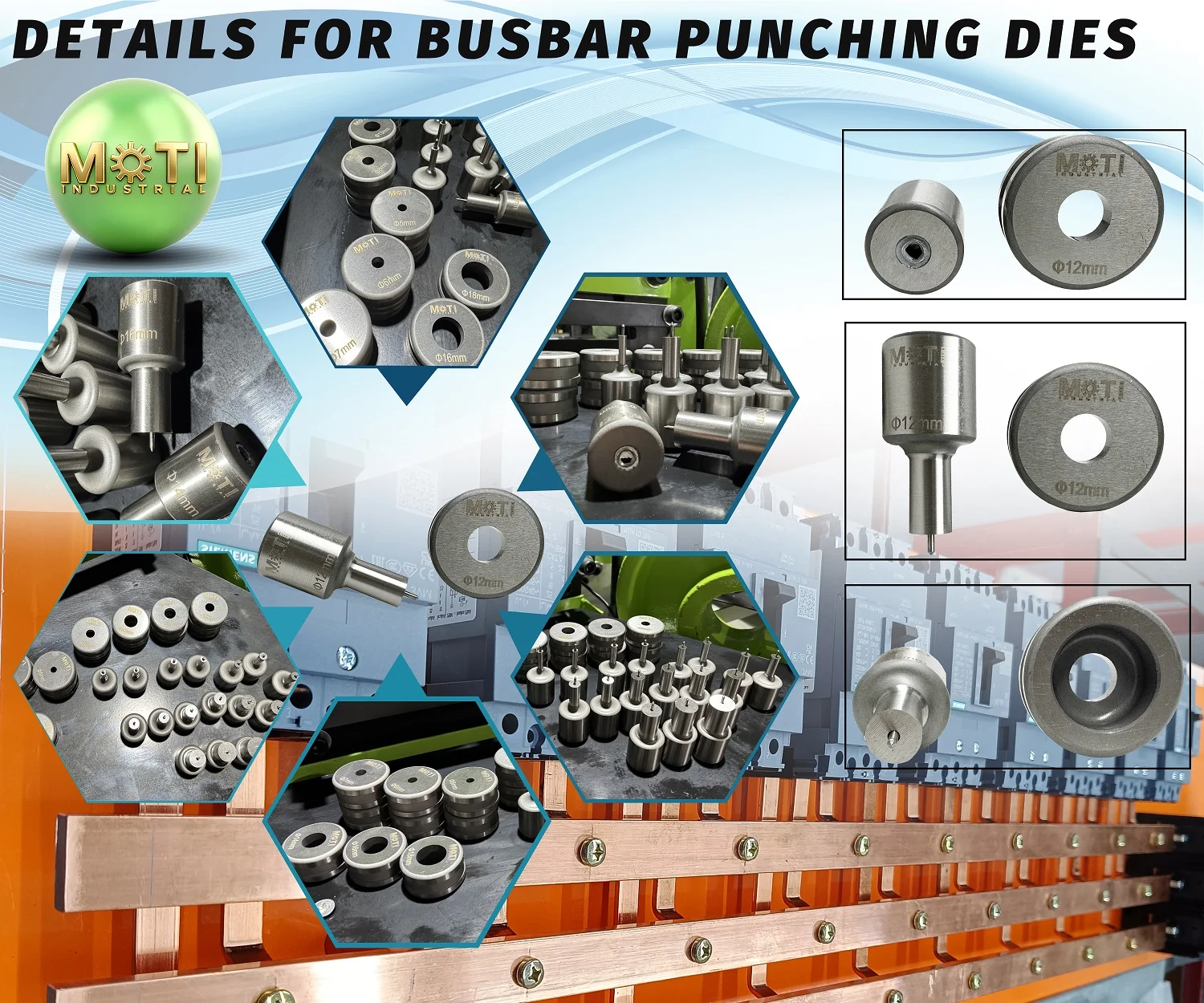

3. Display for more details about MOTI Busbar Punching Dies
We record high-definition videos to help customers more intuitively experience the differences in new MOTI Busbar Punch And Dies.
