The Cordless Battery-Operated Hydraulic Knockout Puncher MOTI-EZ24 is a professional-grade tool designed for electricians and industrial contractors who require speed, precision, and portability.
By eliminating the need for manual pumping or cumbersome hoses, this battery-powered solution allows for effortless hole punching in mild steel, stainless steel, and aluminum electrical boxes or busbars.
Equipped with a powerful 18V Lithium-ion battery and a high-efficiency hydraulic system, it delivers up to 60 tons of force, making it capable of punching electric switchboards up to 60mm in seconds.

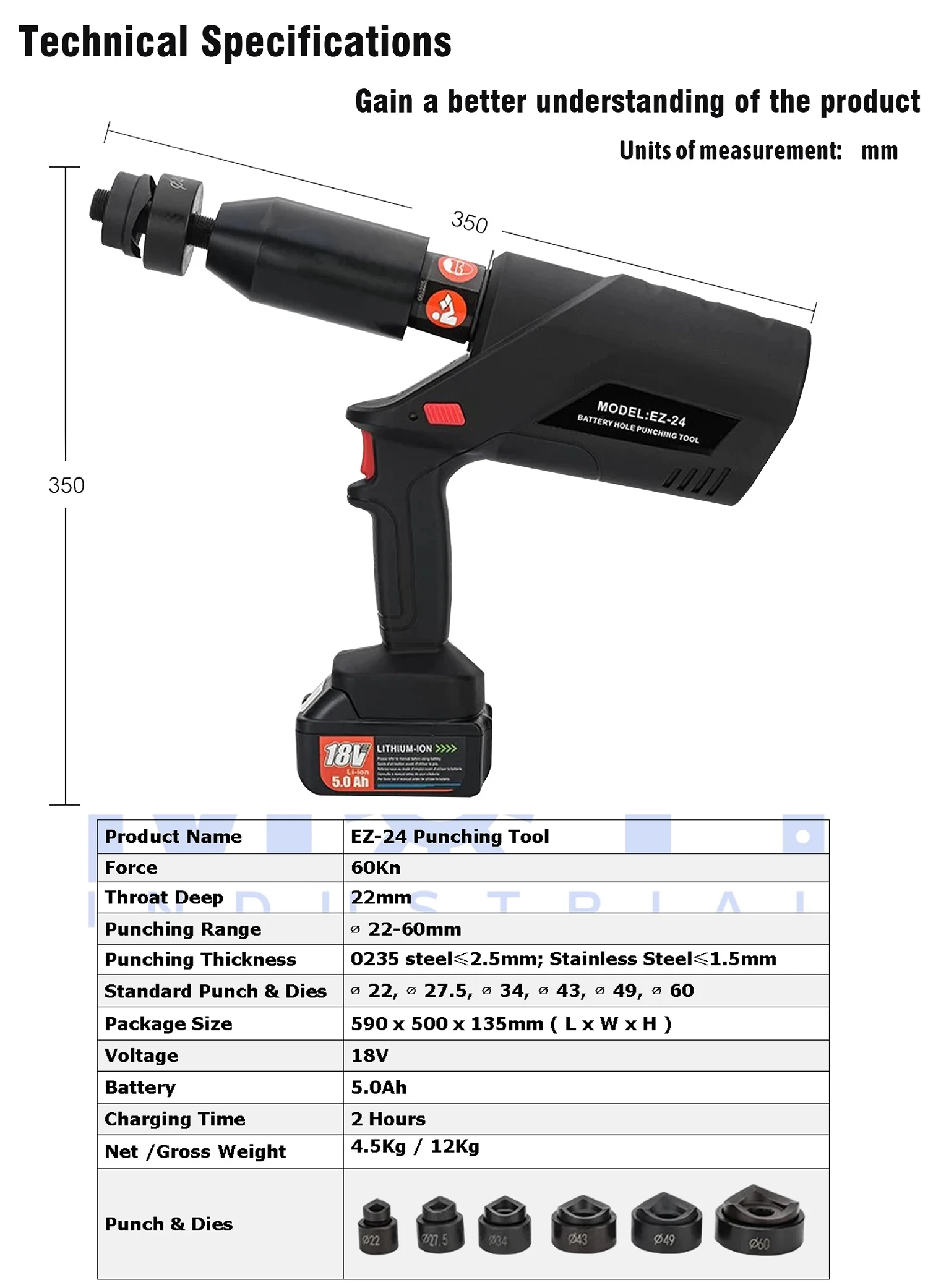

Technical Specifications
| Model | MOTI-EZ24 |
| Force | 60Kn |
| Throat Deep ( mm ) | 22mm |
| Punch Capacity ( mm ) | ∅22 - ∅60 mm |
| Punch Thickness ( mm ) | 0235 steel ≤2.5mm; Stainless Steel≤1.5mm |
| Standard Punches & Dies ( mm ) | ∅22, ∅27, ∅34, ∅43, ∅49, ∅60mm |
| Package Size ( mm ) | 590 x 500 x 135mm ( L x W x H ) |
| Voltage | 18V |
| Battery / Charging Time | 5.0Ah / 2 Hours |
| Net Weight / Gross Weight ( KG ) | 4.5KG / 12KG |

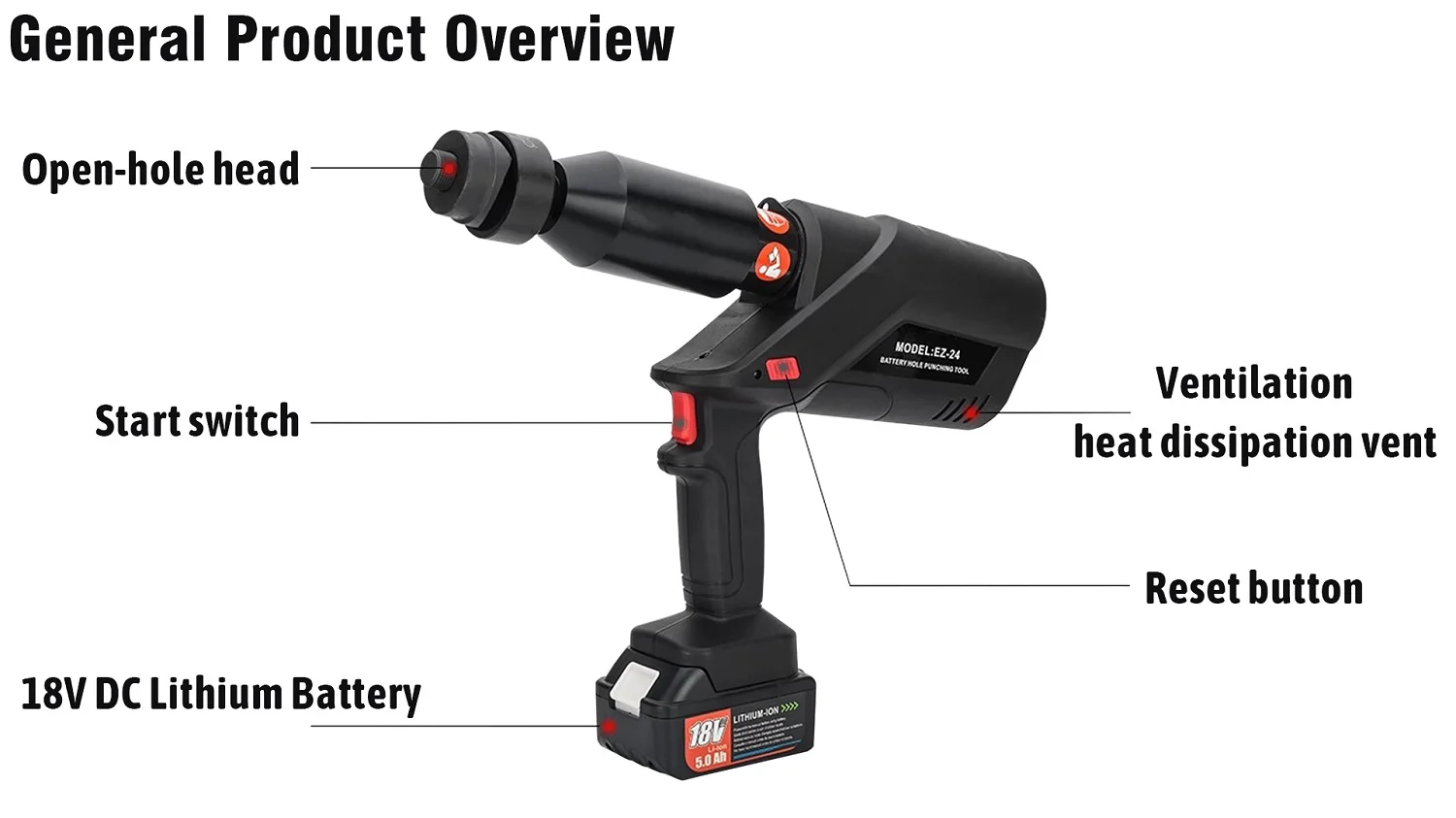

General Product Overview
The main parts of the coedless battery-operated hydraulic knockout punch kit MOTI-EZ24
(1) Open-hole head
(2) Start Switch
(3) 18V DC lithium battery
(4) Reset button
(5) Ventilation heat dissipation vent

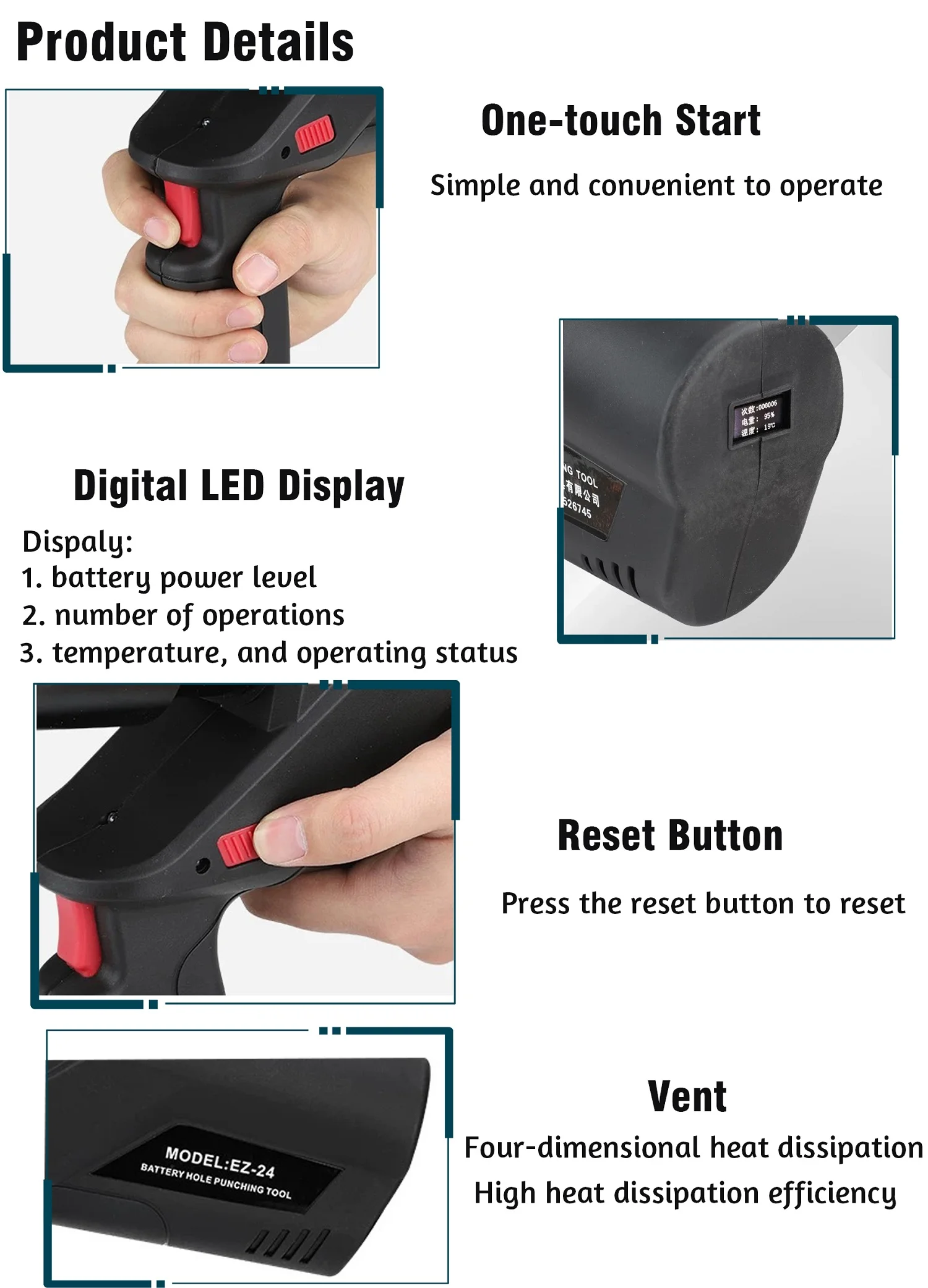

Product Details
(1) One-touch Start
Simple and convenient to operate
(2) Digital LED Display
Show the battery power level, number of operations, temperature, and operating status
