Custom Copper Busbar Punching & Cutting Machine Shipped to UAE

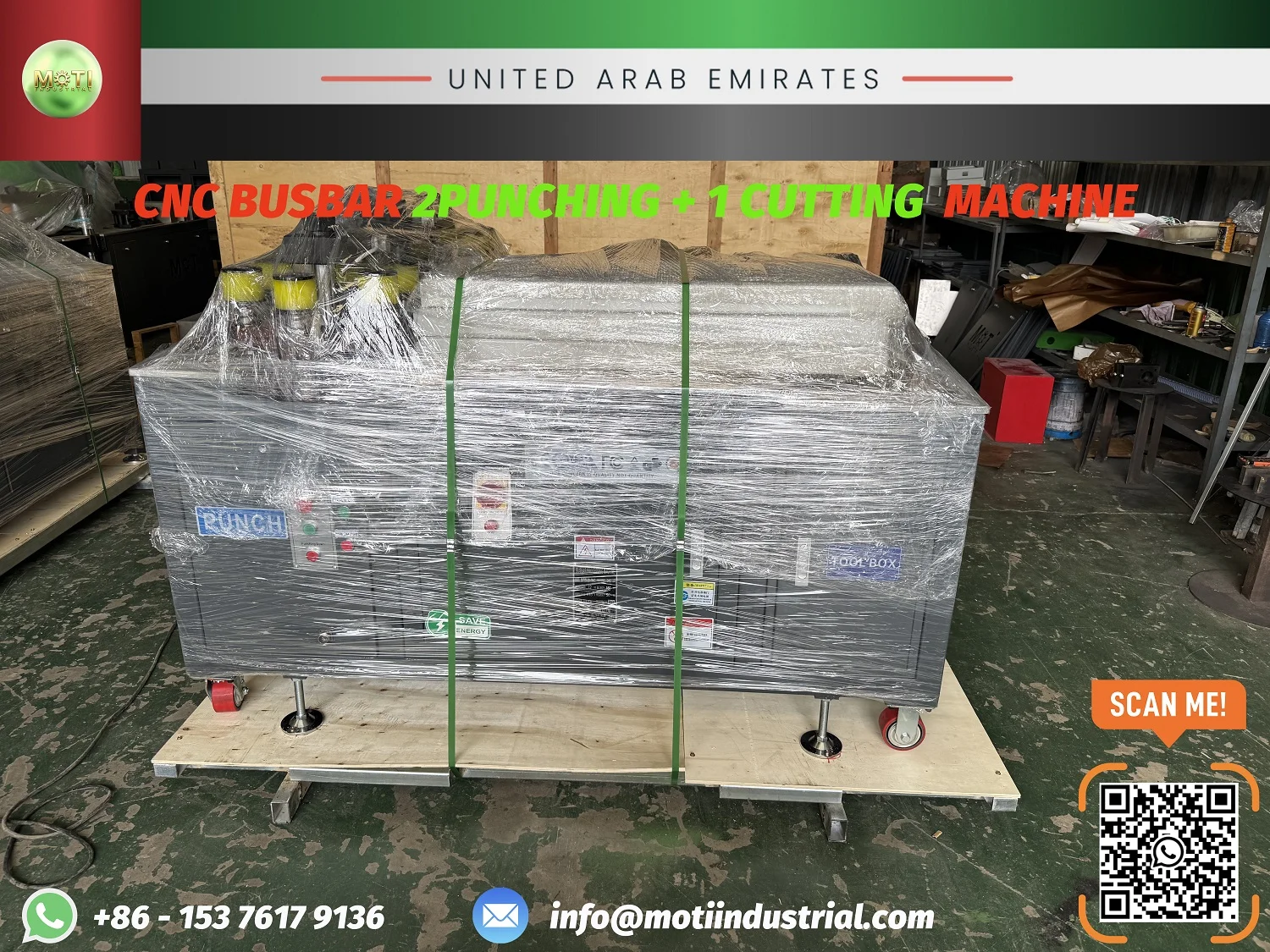

The busbar processing machine shipped to the United Arab Emirates today is a custom model.
Unlike traditional "three-in-one" machines that combine punching, shearing, and bending, this unit is designed with two punching stations and one shearing station.
MOTI INDUSTRIAL can customize the machine configuration according to the customer's production process.
Although it remains a three-station machine, its configuration features a "dual-punch, single-shear" setup.
This model is ideally suited for electrical switchgear manufacturers who need to punch large quantities of copper or aluminum busbars.
1. MOTI Copper Busbar Machine: 2 Punching Units + 1 Cutting Unit

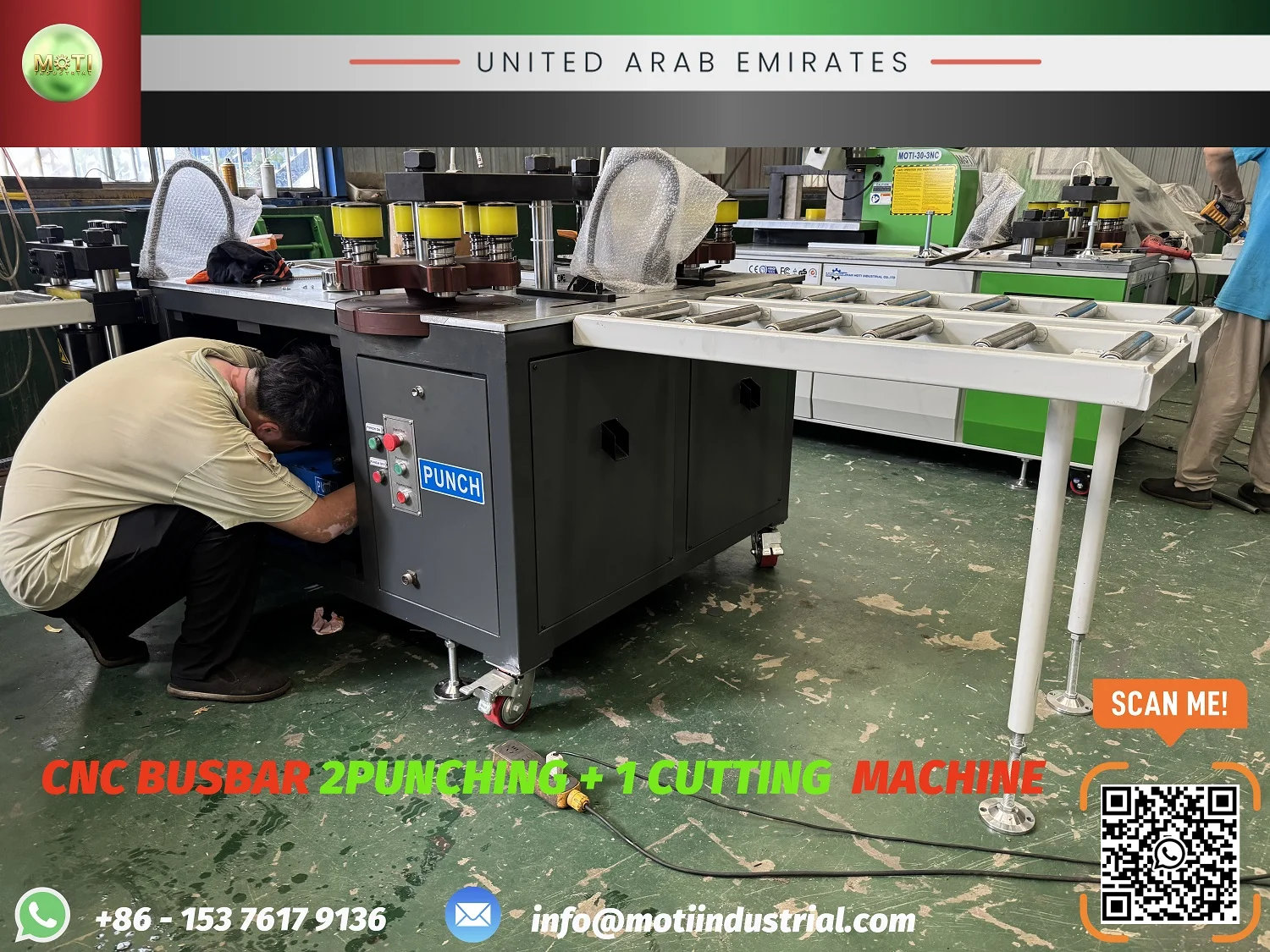

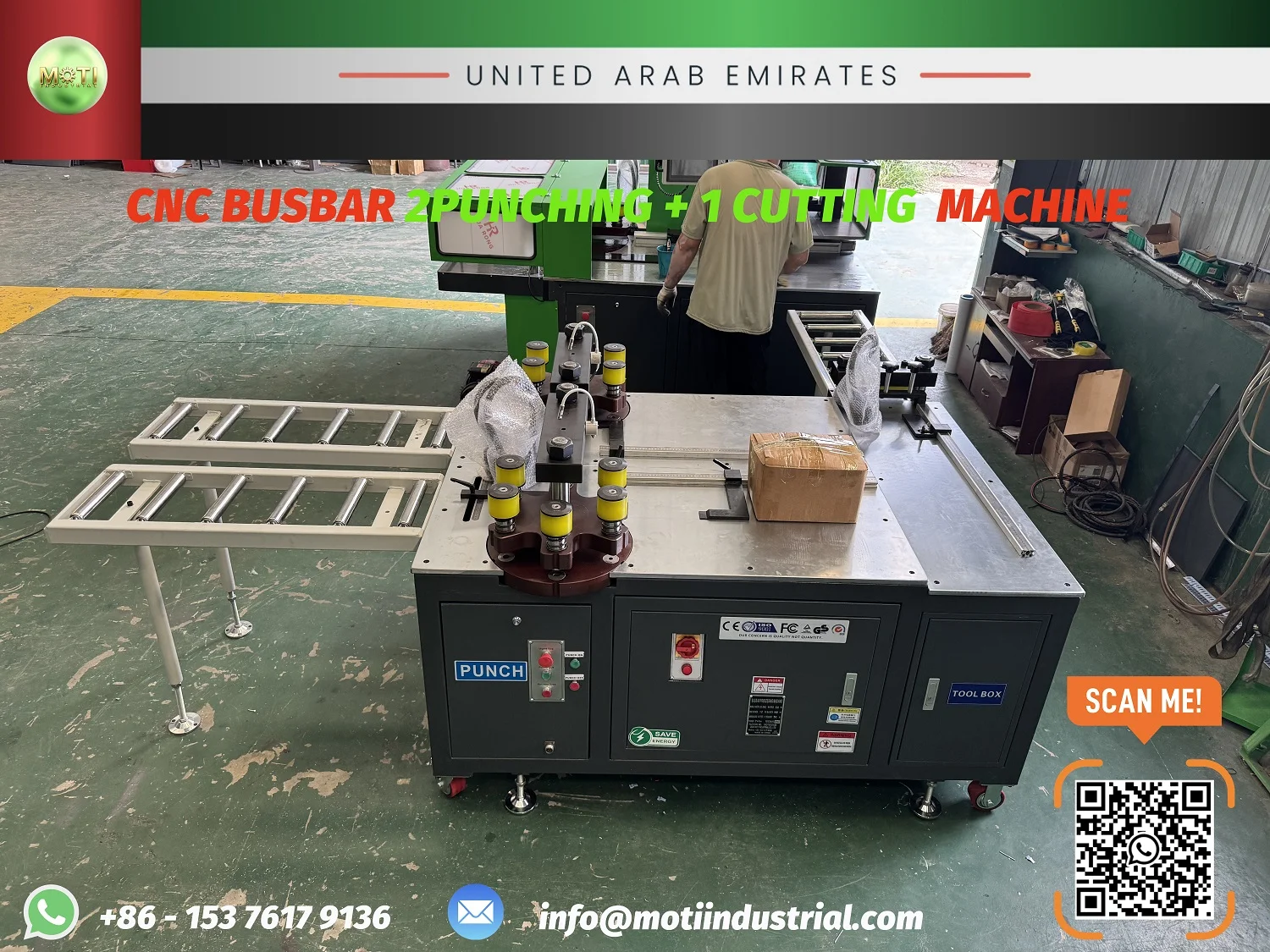

As shown in the images and videos, this custom busbar processing machine is equipped with two punching units and one cutting unit.
Each punching unit features a 6-station turret, allowing the copper busbar machine to hold up to 12 punching dies of various sizes simultaneously, or to use identical die sizes across both units.
Equipped with three motors and three hydraulic systems, the machine enables two operators to work concurrently
—performing punching operations on copper or aluminum busbars of the same or different sizes—thereby significantly boosting productivity.
2. Capacity of the MOTI Busbar Machine (2 Punching + 1 Cutting Stations)
This busbar processing machine is capable of processing copper and aluminum busbars with a thickness of up to 12mm and a width of up to 160mm.
Unlike the MOTI-30-3NC CNC busbar machine, this model replaces the bending unit with a punching unit. It is a fully manually operated machine.
3. Feeding Rack for Two Punching Units and One Cutting Unit

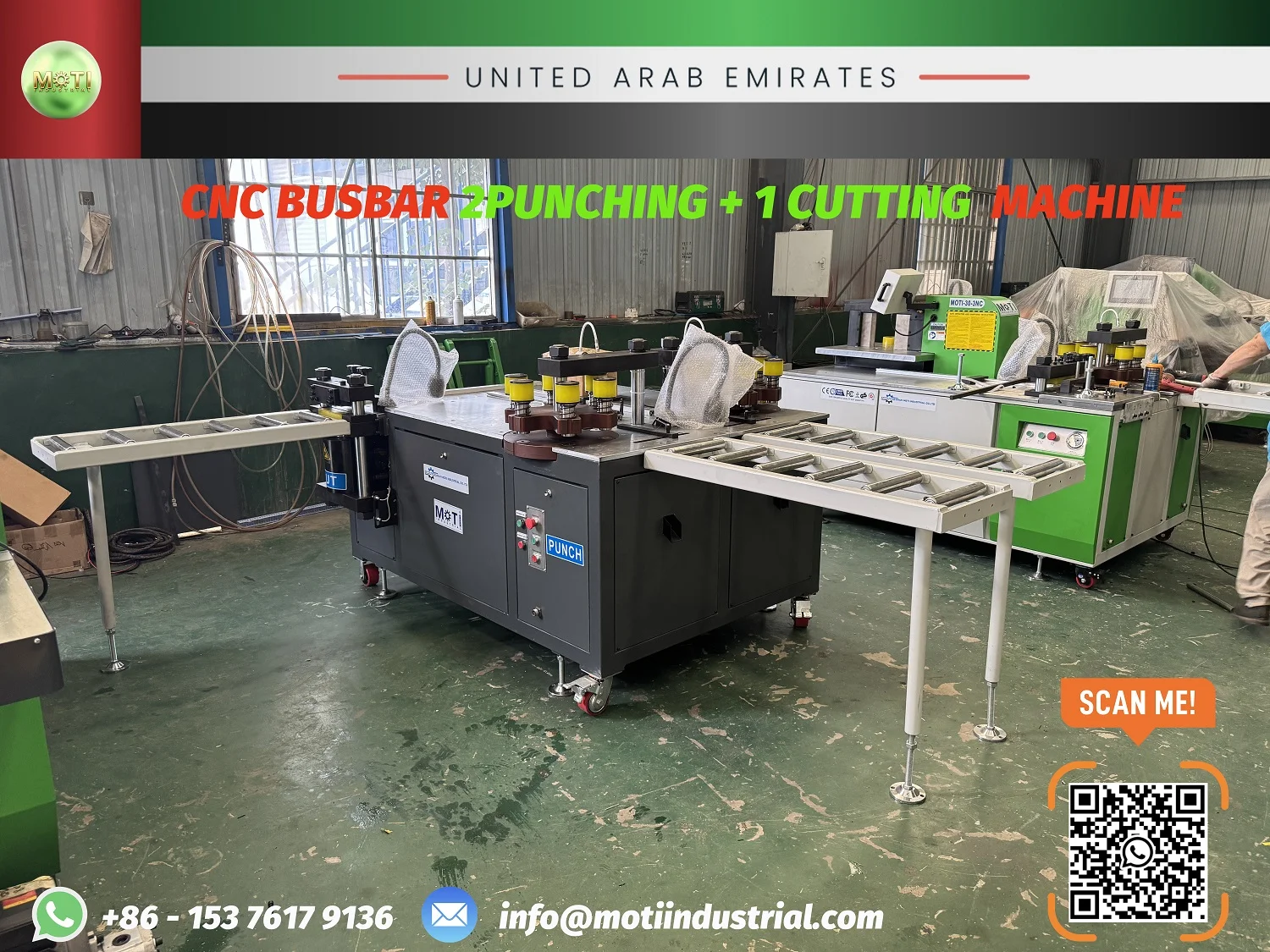

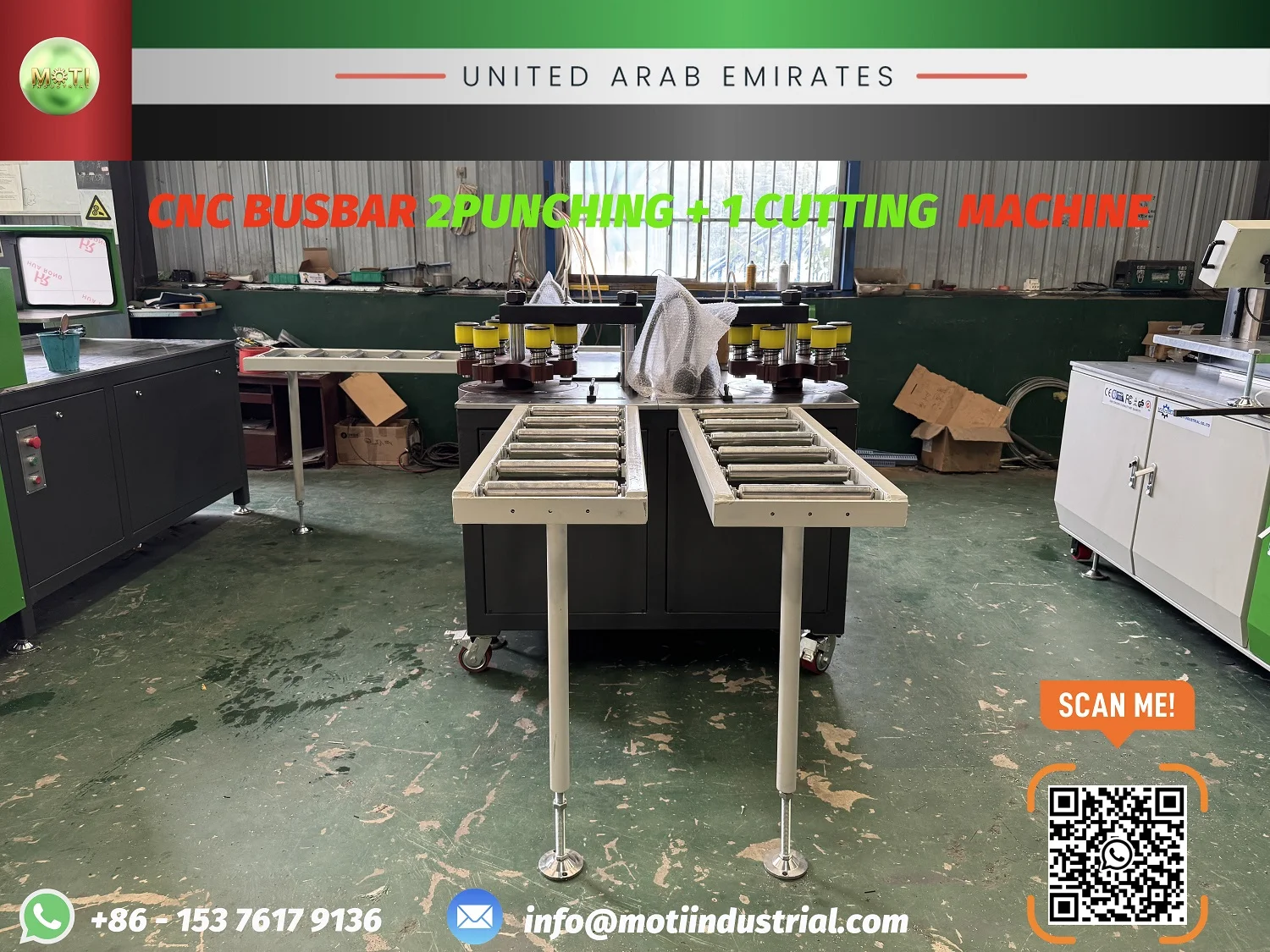

At the client's request, MOTI Industrial custom-designed three feeding racks to facilitate the punching and cutting of copper and aluminum busbars.
Featuring a simple design, the racks can be disassembled and reassembled, making them easy to transport and saving space during packaging.
The support uprights are detachable, and the extra-long threaded leveling feet allow the client to easily adjust the rack's balance to suit the specific floor conditions of their facility.
Conclusion: A Custom Busbar Processing Solution for High-Volume Punching
The successful shipment of this MOTI custom copper busbar processing machine to the United Arab Emirates demonstrates that
busbar processing equipment does not always have to follow a standard configuration.
For this UAE customer, busbar punching efficiency was the priority. Instead of using a conventional 3-in-1 busbar machine with punching, shearing, and bending,
MOTI INDUSTRIAL replaced the bending station with a second punching station to create a 2 Punching + 1 Cutting configuration.
With two independent punching units, two 6-station turrets, and three independent hydraulic systems,
the machine allows two operators to work simultaneously.
The two punching stations can also be equipped with the same or different dies according to production requirements,
making the machine particularly suitable for high-volume copper and aluminum busbar punching.
The machine can process busbars up to 12mm thick and 160mm wide,
while the customized feeding racks provide additional flexibility for material handling and workshop layout.
At MOTI INDUSTRIAL, we believe the best busbar processing machine is not necessarily the one with the most functions,
but the one that best matches the customer's production process.
From standard 3-in-1 CNC busbar machines to customized configurations such as 2 Punching + 1 Cutting,
MOTI provides flexible solutions based on busbar size, production volume, processing requirements, and workflow.
Need a customized copper busbar punching and cutting machine?
Contact MOTI INDUSTRIAL to discuss your busbar specifications and production requirements.
Our MOTI engineering team can help design the right machine configuration for your application.
Your production needs. Our engineering solution.
