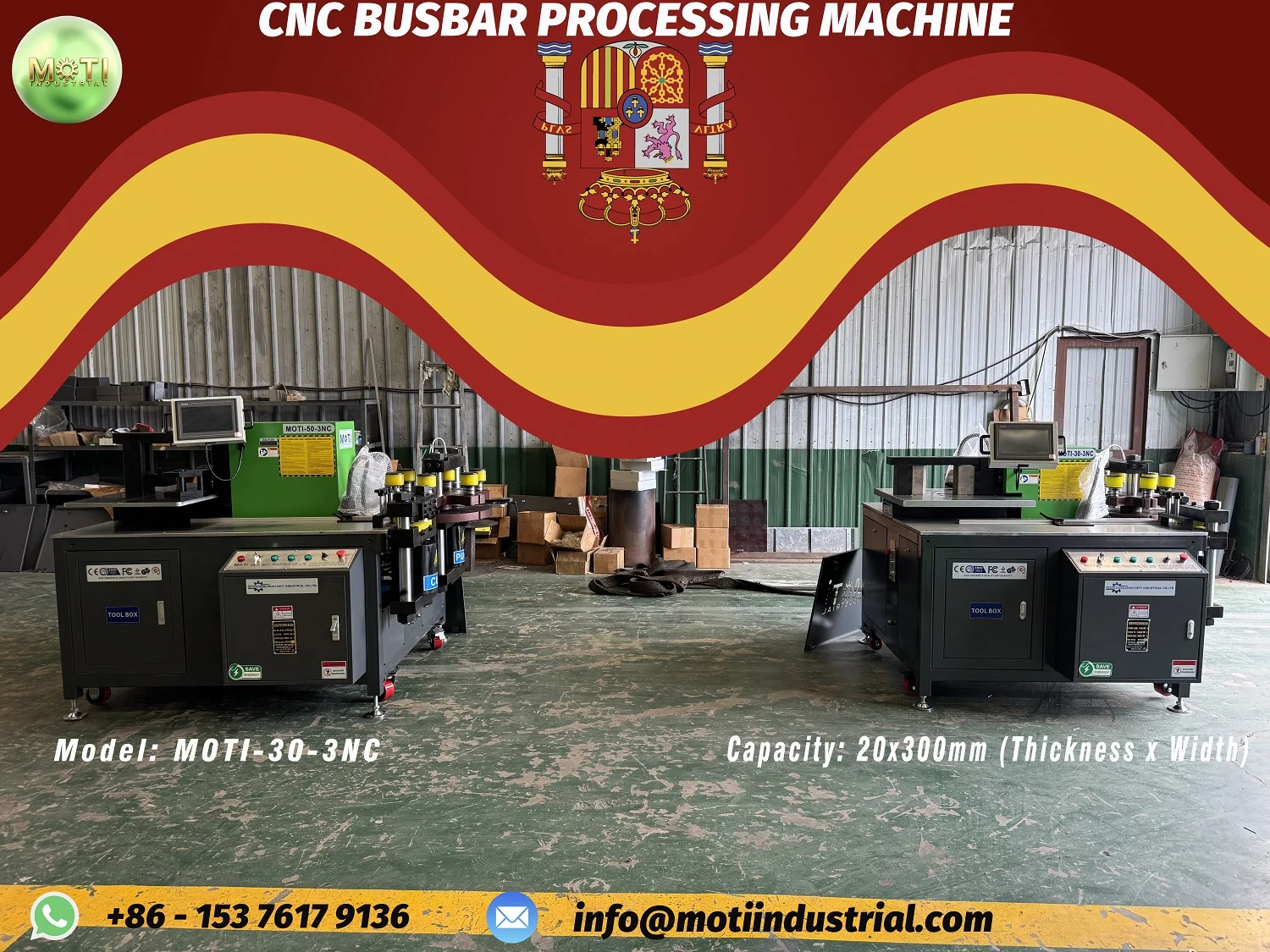

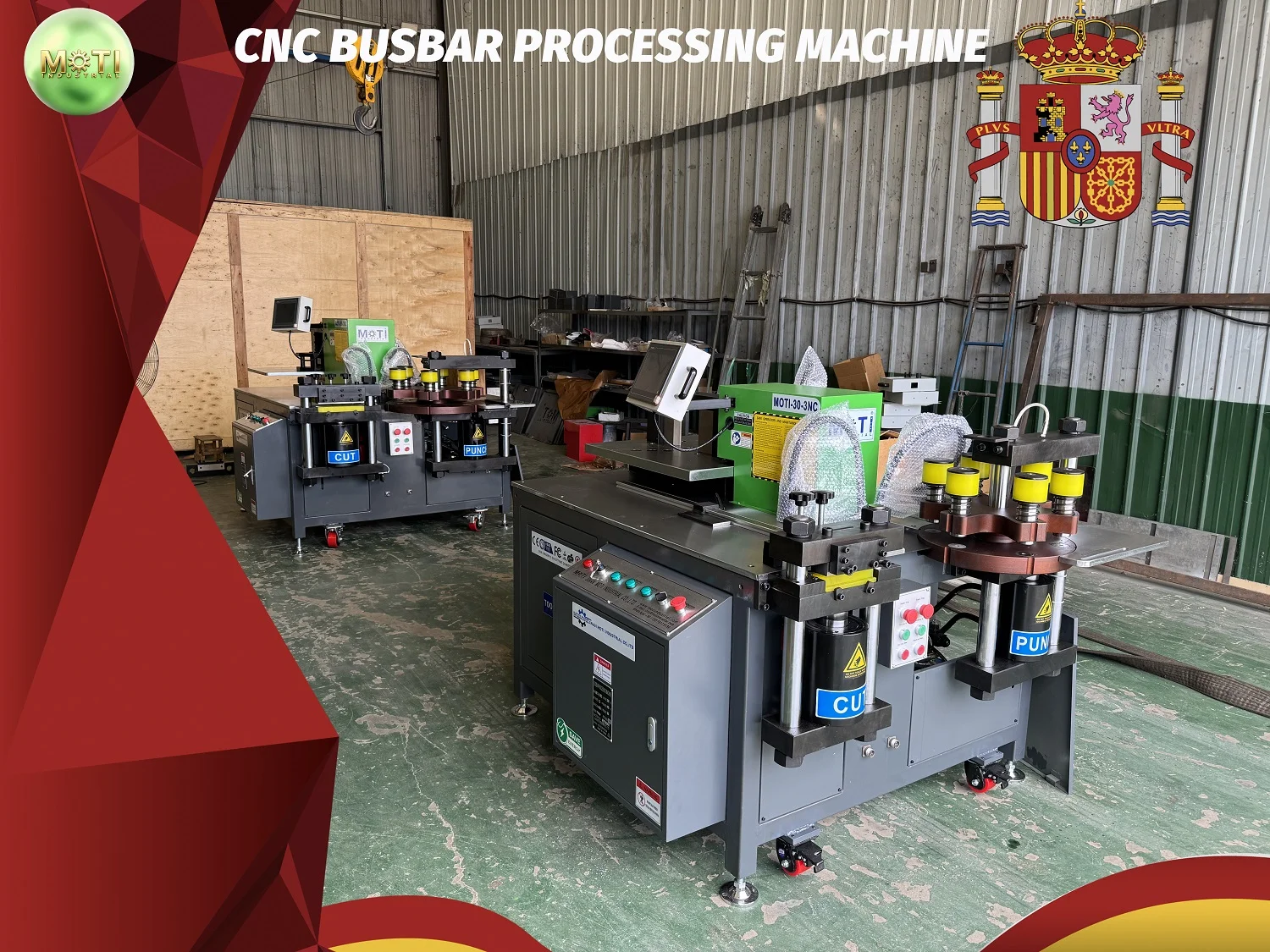

Two CNC busbar processing machines—a MOTI-30-3NC and a MOTI-50-3NC—were shipped to Spain today.

Manufacturers of electrical distribution cabinets have recently been receiving a surge of orders as the market recovers;

this Spanish client, having secured a large volume of orders, found that their existing busbar processing equipment could no longer meet their production requirements.

To handle both small and large busbars with greater precision and efficiency, the client purchased both machines at once.

As this was their first time doing business with us, the client opted to pay via a Letter of Credit.

1. MOTI Busbar Machines in the European Market

MOTI INDUSTRIAL Group enjoys strong recognition among customers in the Western European market.

MOTI copper busbar machines are not only exported to Spain but are also purchased by clients in the UK, France, Italy, Georgia, Belgium, and even Germany.

European customers maintain extremely high standards regarding the quality and after-sales service of copper busbar processing machines;

consequently, machine configuration and assembly precision are paramount.

Many busbar machine manufacturers compromise on configuration and processing techniques to cut prices and capture market share,

which significantly undermines machine longevity and processing accuracy.

Our Italian clients have praised the quality and precision of MOTI busbar punches and dies, noting that they rival those of German mold manufacturers—yet our products offer superior cost-effectiveness.

To honor this trust and recognition, MOTI consistently delivers stable, high-quality copper busbar machines, helping our customers reduce costs and enhance efficiency.

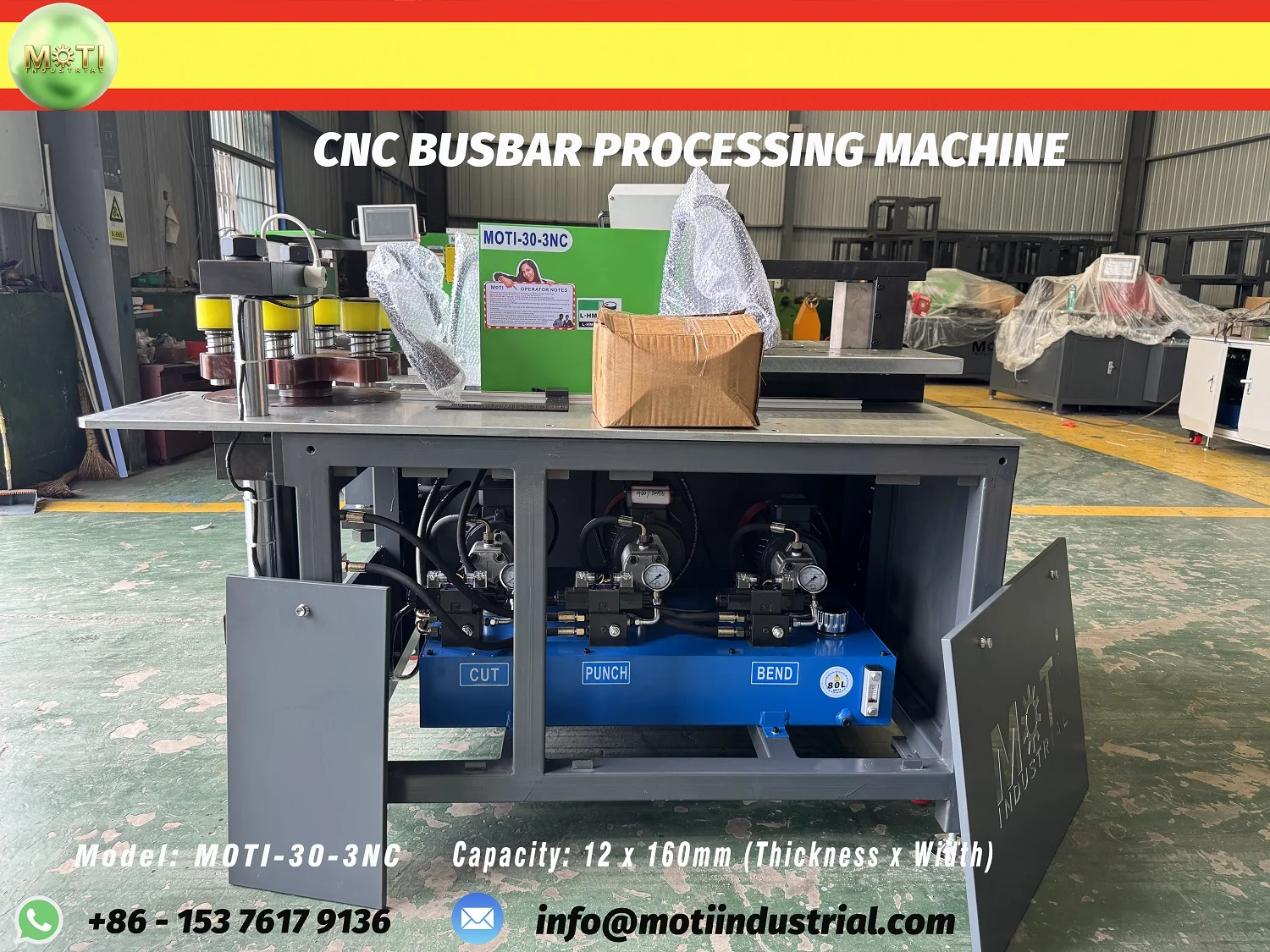

2. MOTI-30-3NC Copper Busbar Machine

(1) Three-in-One Design

The MOTI-30-3NC features three distinct working units—punching, shearing, and bending.

These three stations operate independently without interfering with one another.

(2) Simultaneous Operation

This model is equipped with three motors and three hydraulic systems, ensuring that the punching, shearing, and bending units can all operate simultaneously.

(3) 10-Inch Touchscreen

The MOTI-30-3NC utilizes a Siemens PLC (Germany) and a 10-inch touchscreen to form its CNC bending system.

Developed in-house by MOTI INDUSTRIAL Group, this system has been refined based on customer feedback and usage habits to ensure greater ease of operation.

(4) Busbar Punches & Dies

MOTI copper busbar machines utilize punching dies made from Cr12MoV tool steel.

Featuring a modular design, the tooling allows for the replacement of just the small punch tip if damage occurs, thereby reducing operating costs for the customer.

Many busbar machine suppliers also claim to use Cr12MoV tool steel for their punching dies;

however, we advise customers to verify the product via video inspection before placing an order, as many are counterfeits made from cheap Cr15 (or similar low-grade) tool steel.

Such busbar punching dies are significantly cheaper to produce than ours, but they cannot match the concentricity and service life of our high-quality tooling.

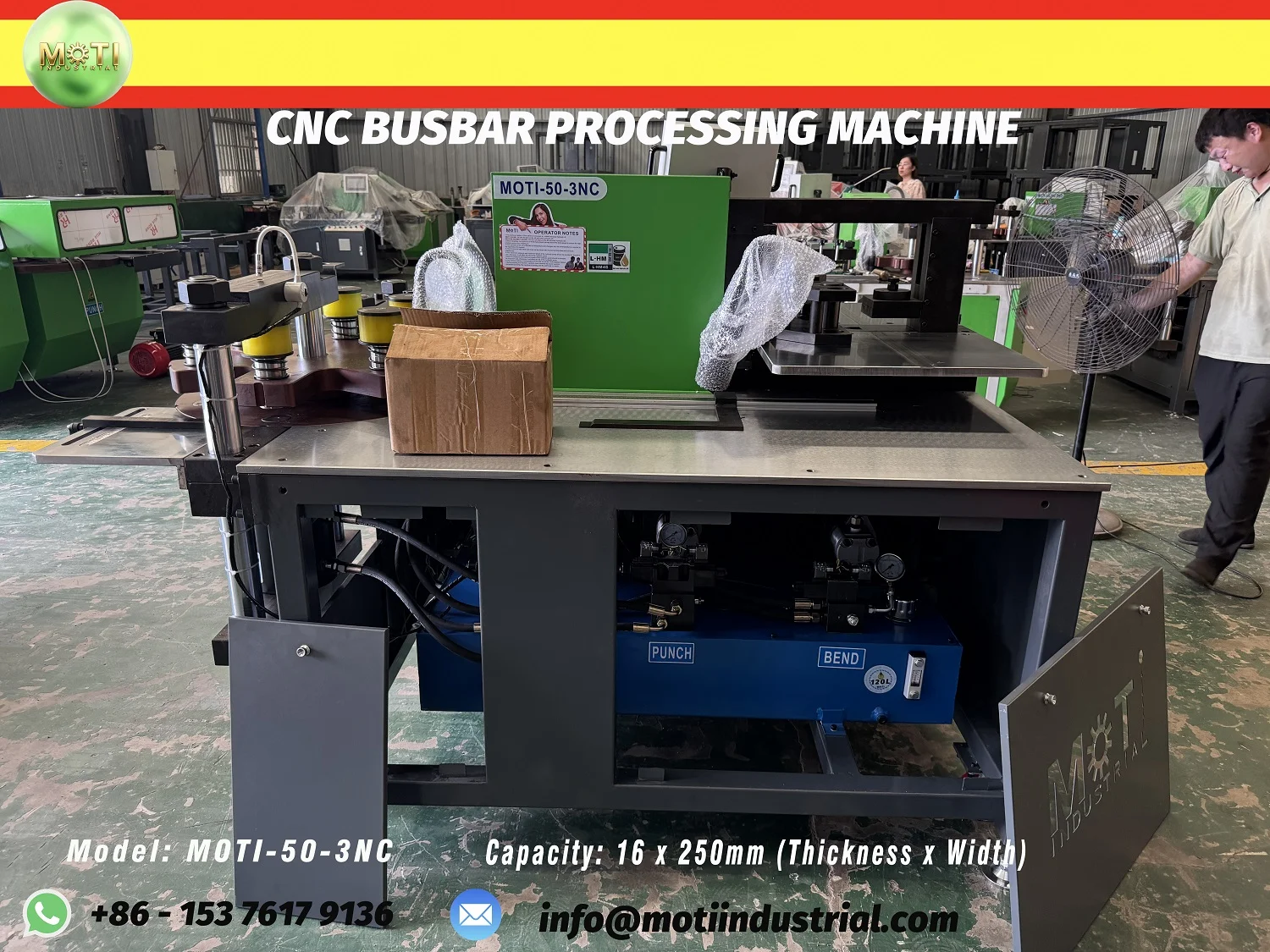

3. MOTI-50-3NC CNC Copper Busbar Processing Machine

The MOTI-50-3NC CNC Copper Busbar Processing Machine is designed for manufacturers who need higher processing capacity while maintaining precision, flexibility, and production efficiency.

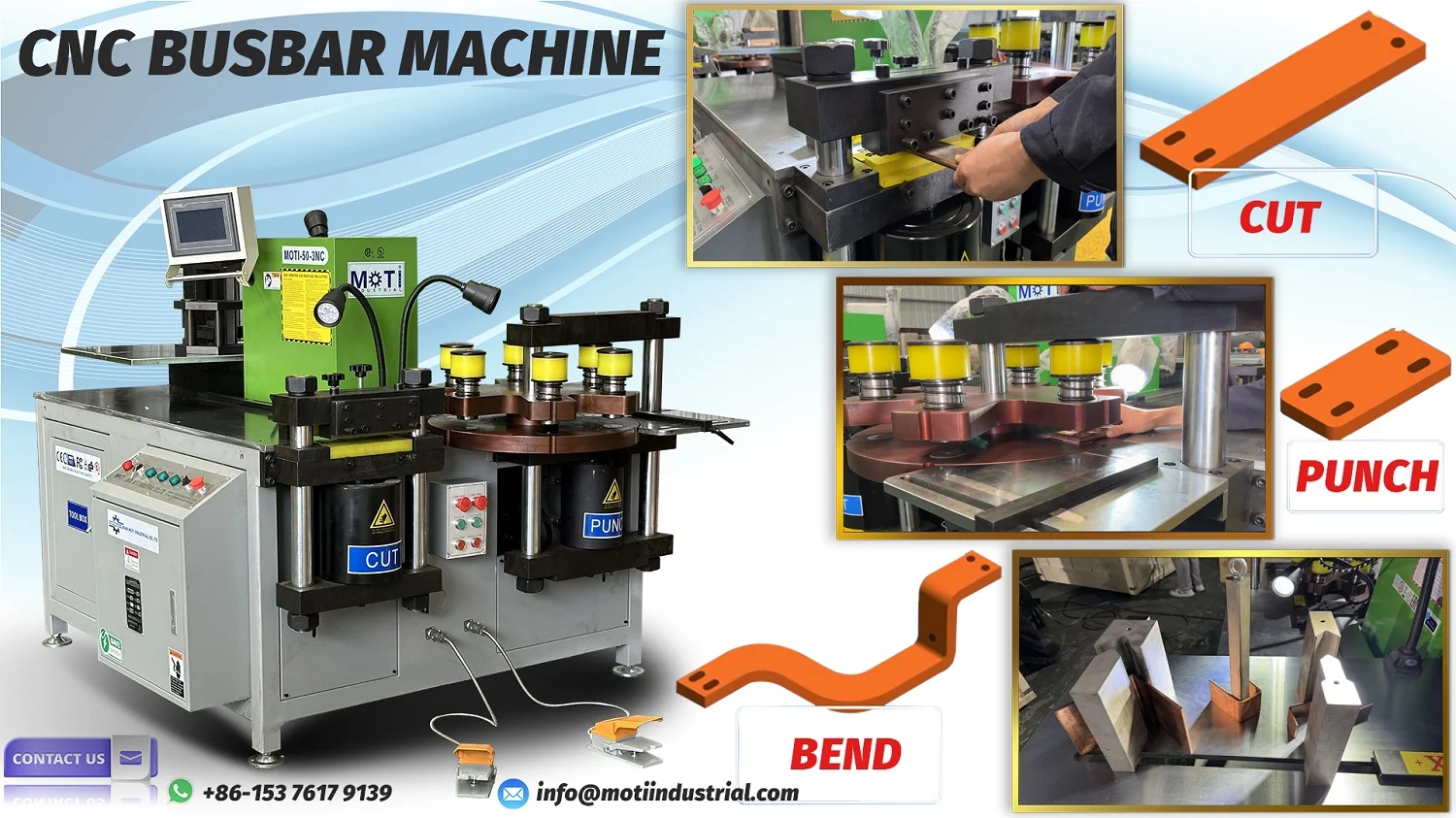

As a 3-in-1 CNC busbar machine, the MOTI-50-3NC integrates punching, shearing, and bending into one machine.

It can process copper and aluminum busbars up to 16mm thick and 250mm wide, making it suitable for electrical distribution cabinets, switchgear, transformers, and other power equipment applications.

(1) 3-in-1 Busbar Processing

The MOTI-50-3NC combines three independent working stations:

• Busbar Punching
• Busbar Shearing
• Busbar Bending

Each working unit is independently controlled, allowing operators to adjust the corresponding station according to the actual processing requirements.

More importantly, the machine is equipped with three independent motors and hydraulic systems, allowing the punching, shearing, and bending units to operate independently and simultaneously.

This helps reduce material handling and waiting time while improving overall production efficiency.

(2) 500kN Punching and Bending Capacity

The MOTI-50-3NC provides up to 500kN punching force and 500kN bending force, with a maximum processing capacity of 16mm thickness × 250mm width.

This capacity makes the machine suitable for medium-to-heavy copper busbar fabrication, especially for manufacturers producing electrical cabinets, switchgear, distribution panels, and transformer-related components.

(3) Precision CNC Bending with Siemens Control

The bending unit of the MOTI-50-3NC uses a Siemens CNC control system with a 10-inch touchscreen interface.

Operators can input the required bending parameters through the CNC system, making repeated bending operations easier and more consistent.

The machine supports multiple busbar forming applications through different tooling configurations, including:

• Vertical bending
• Flat / horizontal bending
• U-shaped bending
• Z-shaped bending
• Embossing
• Twisting

The published specifications indicate ±1° bending precision and ±0.3° repeat bending precision, with actual results depending on material, thickness, tooling, and operating conditions.

(4) Stable and Clean Busbar Shearing

The shearing unit is designed for clean and accurate cutting of copper and aluminum busbars.

The machine uses a double-column integral shearing structure, which helps maintain structural stability during cutting and reduce deformation over long-term operation.

The flat-blade shearing method is designed to produce a flat cutting surface with minimal burrs and without unnecessary material waste, helping maintain the quality of the busbar before subsequent punching or bending operations.

(5) Flexible Punching System

The punching unit of the MOTI-50-3NC uses a six-position rotary turret and supports multiple positioning methods.

Depending on the production requirement, operators can use:

• Axis positioning
• Punching pin positioning
• Laser positioning

The machine supports punching diameters from approximately Ø4.3mm to Ø34mm, with a maximum punching capacity of 16 × 250mm.

(6) Durable Cr12MoV Punching Dies

MOTI uses Cr12MoV tool steel for its busbar punching dies.

The modular tooling design allows the punch tip to be replaced separately if damaged, which can help reduce tooling replacement costs and simplify maintenance.

For customers producing large quantities of copper busbars, the quality and concentricity of the punching tools are particularly important.

Because poor tooling can lead to inaccurate holes, premature tool wear, and inconsistent processing results.

4. Why the Spanish Customer Chose Both MOTI-30-3NC and MOTI-50-3NC

The Spanish customer was not simply looking for another busbar machine.

With a growing volume of orders, their existing busbar processing equipment could no longer keep up with production requirements.

Instead of relying on a single machine for all busbar sizes, the customer selected both the MOTI-30-3NC and MOTI-50-3NC.

This combination provides greater production flexibility:

MOTI-30-3NC
For smaller and medium-size copper and aluminum busbars. It's capacity up to 12mm (Thickness) x 160mm (Width).

MOTI-50-3NC
For larger and thicker busbars, with processing capacity up to 16 × 250mm and 500kN punching and bending force.

By using two machines with different processing capacities, the customer can better match each busbar job to the appropriate machine, helping improve production flow and reduce unnecessary setup and waiting time.

For a manufacturer handling different busbar specifications and increasing order volumes, this combination provides a more flexible and scalable production solution.

5. MOTI Busbar Machines for the European Market

European electrical manufacturers generally place strong emphasis on machine quality, processing accuracy, component reliability, and after-sales support.

For MOTI INDUSTRIAL, these requirements are not simply specifications on a quotation—they are part of the machine-building process.

From the selection of punching dies and hydraulic components to machine assembly, CNC control, testing, and final inspection, MOTI focuses on maintaining consistent manufacturing standards.

Our busbar machines have been supplied to customers across European markets, including Spain, Italy, France, Germany, Belgium, and the UK.

For customers purchasing a CNC copper busbar processing machine for long-term production, reliable machine construction and responsive technical support are just as important as the initial purchase price.

Conclusion: A Flexible CNC Busbar Solution for Growing Production

The shipment of the MOTI-30-3NC and MOTI-50-3NC CNC Copper Busbar Processing Machines to Spain represents more than another equipment delivery.

It reflects the growing demand from electrical manufacturers for reliable, accurate, and efficient busbar processing solutions.

With their 3-in-1 design, independent punching, shearing and bending units, CNC control, and flexible tooling options, the MOTI-30-3NC and MOTI-50-3NC can support different production requirements and busbar specifications.

For manufacturers looking to increase production capacity, reduce manual processing, and improve the consistency of copper busbar fabrication, choosing the right CNC busbar machine can make a significant difference.

MOTI INDUSTRIAL is ready to provide the right busbar processing solution based on your material, busbar dimensions, production volume, and processing requirements.

If you are looking for a CNC Copper Busbar Processing Machine in Spain, Europe, or other global markets, contact MOTI INDUSTRIAL for machine specifications, sample processing, customized tooling, and technical consultation.

Cut. Punch. Bend. One machine. Better production.
