Busbar Punch and Dies for CNC Busbar Processing Machine To Canada

Busbar punch and dies are essential tools for busbar processing machines to perform operations such as punching round holes, oval holes ( ie, waist hole ), square holes, oblong hole and chamfering in copper busbars.

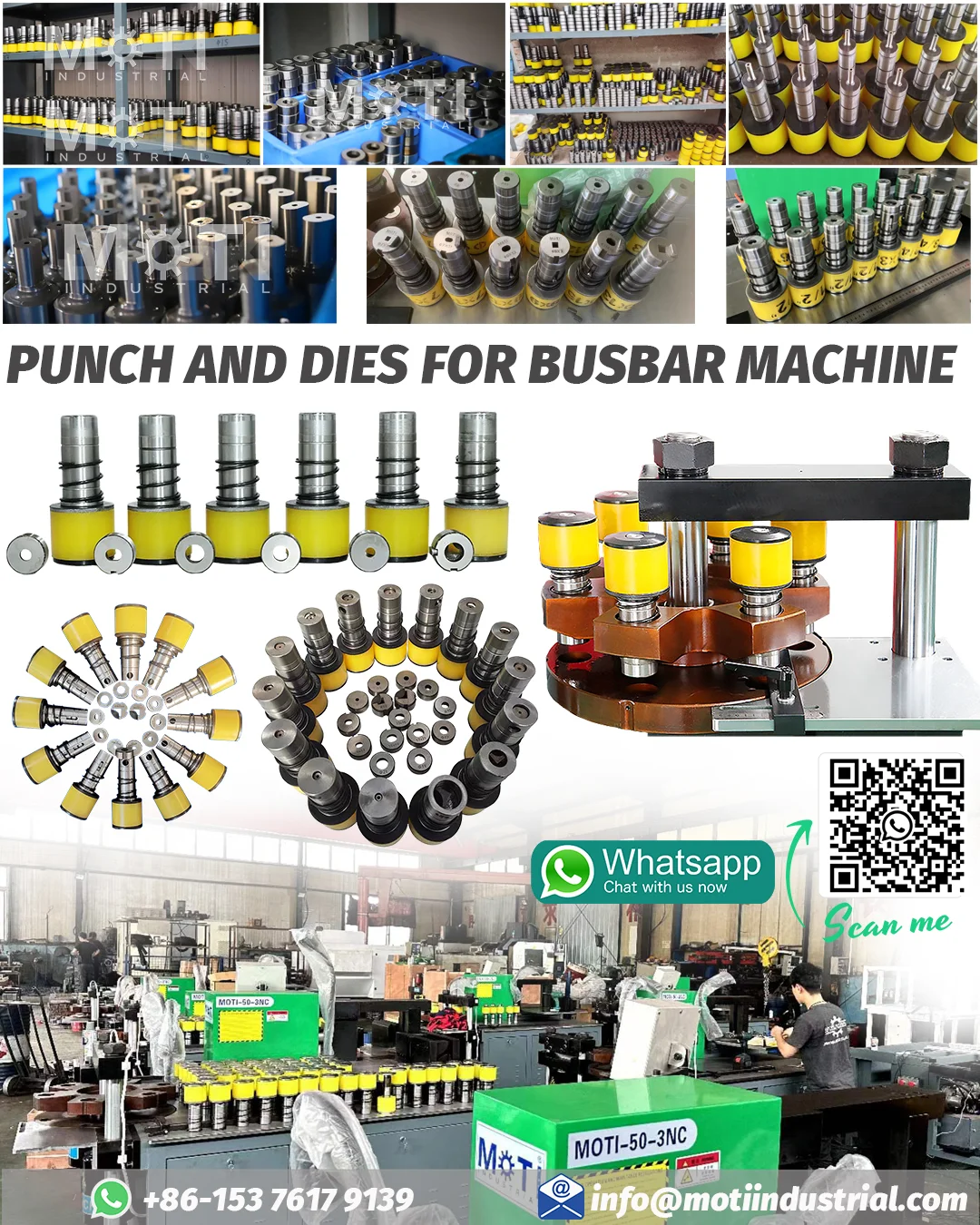

The punching unit of the MOTI busbar machine adopts a six-station rotary table design, allowing for the installation of six different sizes of busbar punching dies. By rotating the work turntable, it can perform punching operations on copper busbars of six different sizes.

MOTI INDUSTRIAL as a high quality factory custom molds maker Busbar Punching Dies, we can meet all different requirements from clients.

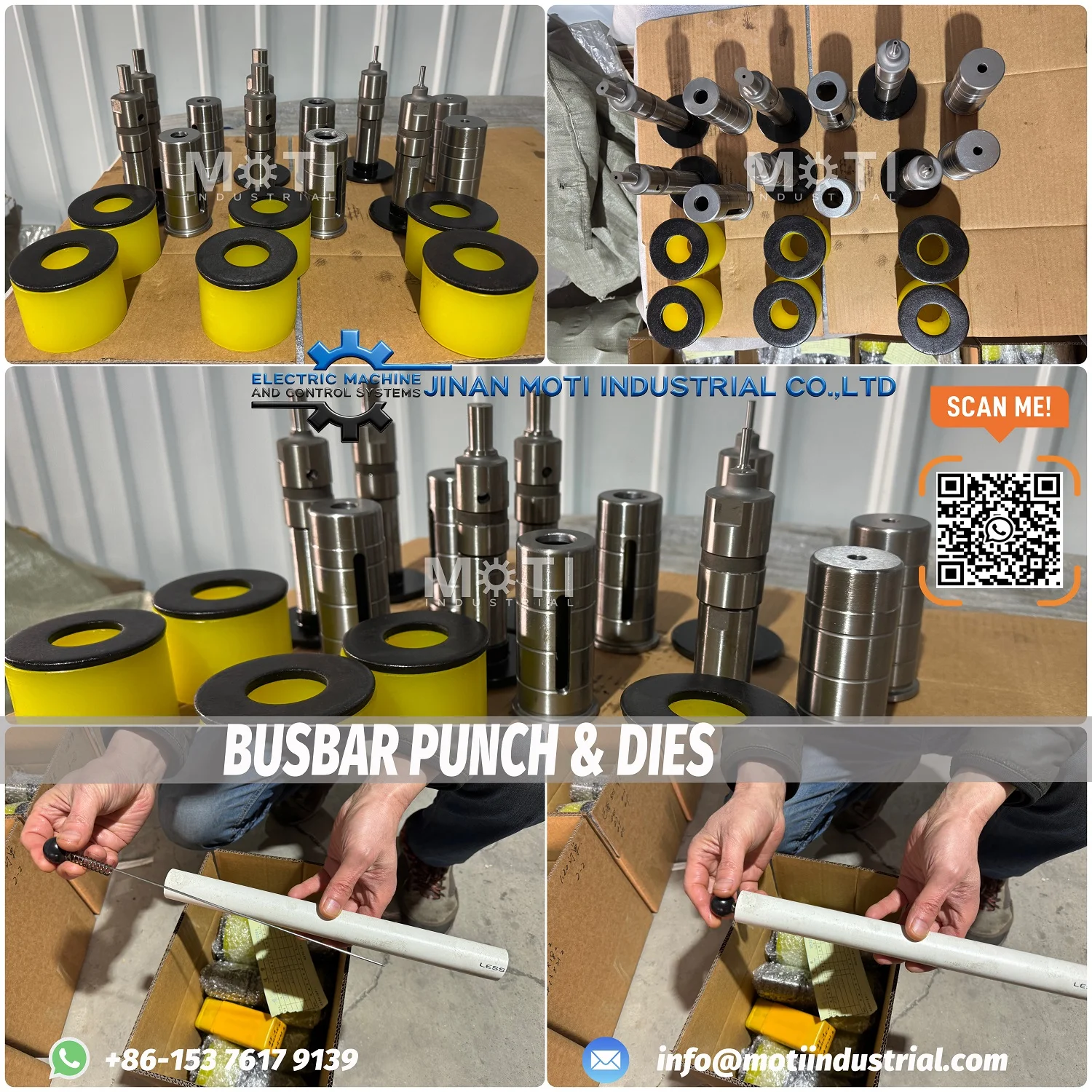

1. Busbar Punching dies were sent to Canada

This Canadian customer purchased a copper busbar machine JPMX-303ESK from Jingpeng Machinery Company, but they have consistently purchased busbar punch and dies from us for the past three years. According to customer feedback, the quality of our busbar punch and dies are comparable to those manufactured in Germany.

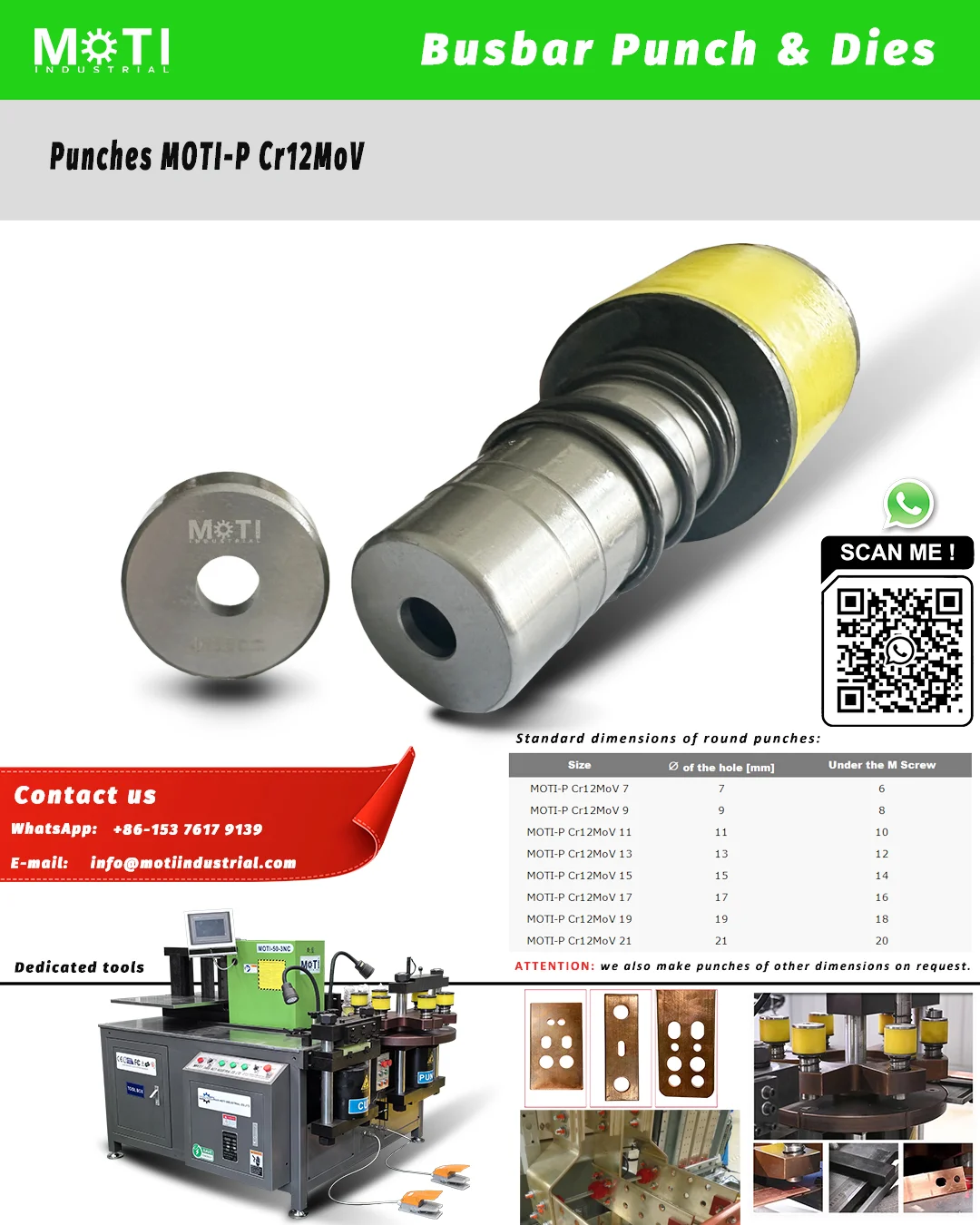

In this order, the customer requires a custom-made busbar punch and die with a diameter of 5mm, and the punch head must have a center hole to facilitate the use of a locating pin for punching.

While fulfilling the customer's requirements, we also manufactured a finer punching and positioning pin, suitable for a 5mm diameter hole, to make it easier for the customer to use.

While providing high-quality products to our customers, we also consider from the customer's perspective how to make our products easier for them to use.

2. Busbar Punching die installation method

Here, we need to reiterate the correct usage of our newly designed busbar punching die.

The punch head, being the most important part of the busbar punching die, is also the most prone to damage. The split design, where the punch head is installed separately, saves costs for customers when replacing the busbar punch die. There is no need to replace the entire central shaft of the busbar punching die.

Therefore, during installation, it is necessary to tightly assemble all parts of the die according to our instructions, ensuring there is no looseness or insecure bolts and nuts.
